Deflection is the most interactive, fast, and precise app available for structural beam analysis.

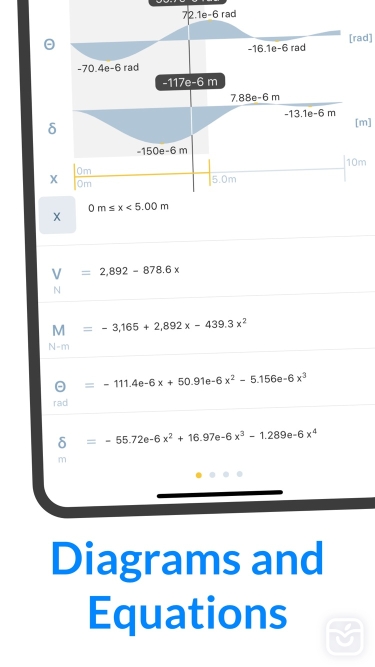

RESULTS
Obtain design results and diagrams in real-time.
• Shear force
• Bending moment
• Deflection distance

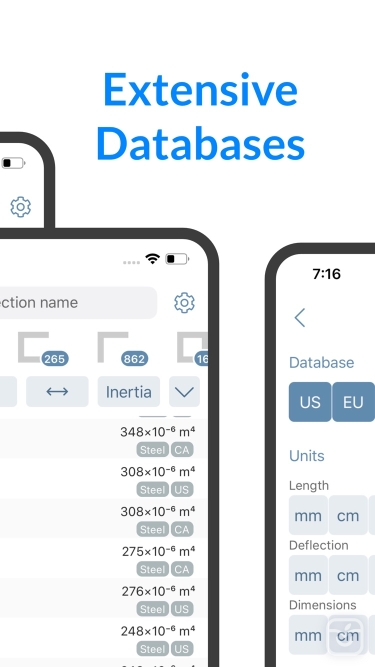

CROSS SECTION DATABASES

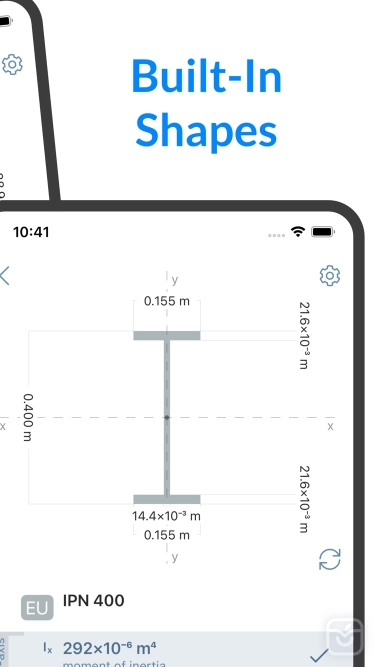

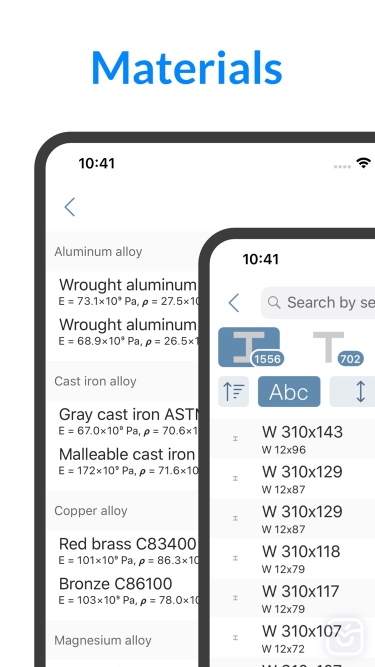

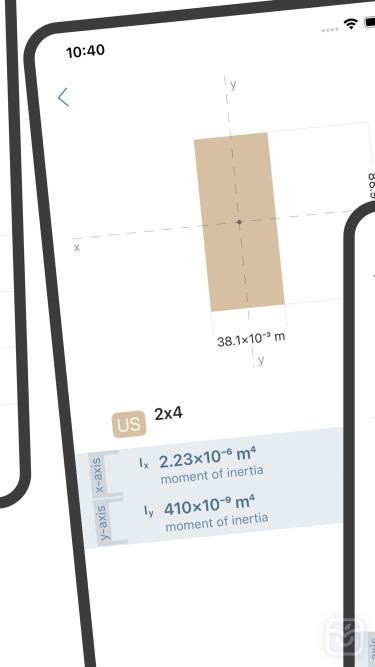

Specify values directly, or find common shapes and materials using the built-in databases.
• United States
• Europe
• Japan
• India
• Russia
• Great Britain
• Canada
• Australia
• China

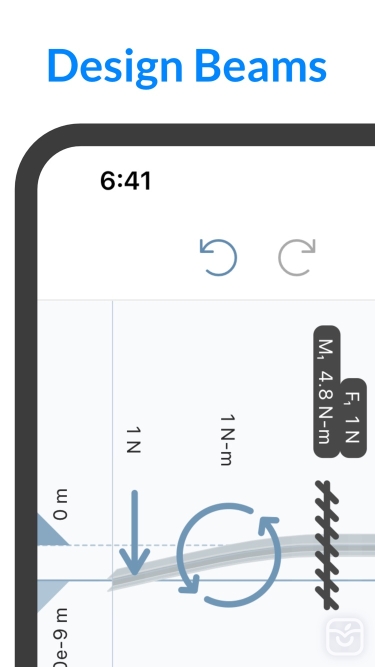

UNLIMITED LOADS AND SUPPORTS
Simply drag any load or support on the beam.
• Concentrated point loads
• Distributed loads
• Moment loads
• Simple supports
• Fixed supports
• Fixed hinges
• Floating Gerber hinges
OTHER FEATURES
• Automatic detection of local maxima and minima in diagrams

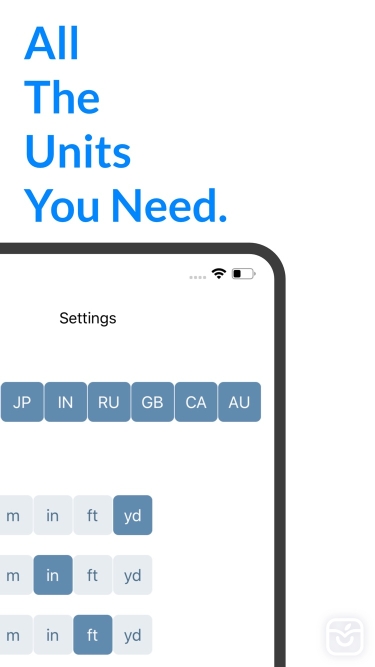

• Metric and standard measurement units
CONTACT
We want to hear from you! Issues, questions, or requests? Please submit a review or email contact@ketchep.com
• NEW: On iPad, besides editing loads and supports directly in the graphical editor, you can now use a new panel in the right-side toolbar. The new panel displays information in an easier-to-read tabular form.
• NEW: Spring supports! Simply drag and drop a spring like any other support and then configure its spring constant directly on the beam editor or using the loads and supports panel.
• IMPROVED: Precise dragging of loads and supports should feel easier now that we improved the algorithm we use to snap them in place.
• NEW: Database for Chinese shapes
• IMPROVED: Updated US data, including new shapes, designations, and some new properties such as workable gage.
